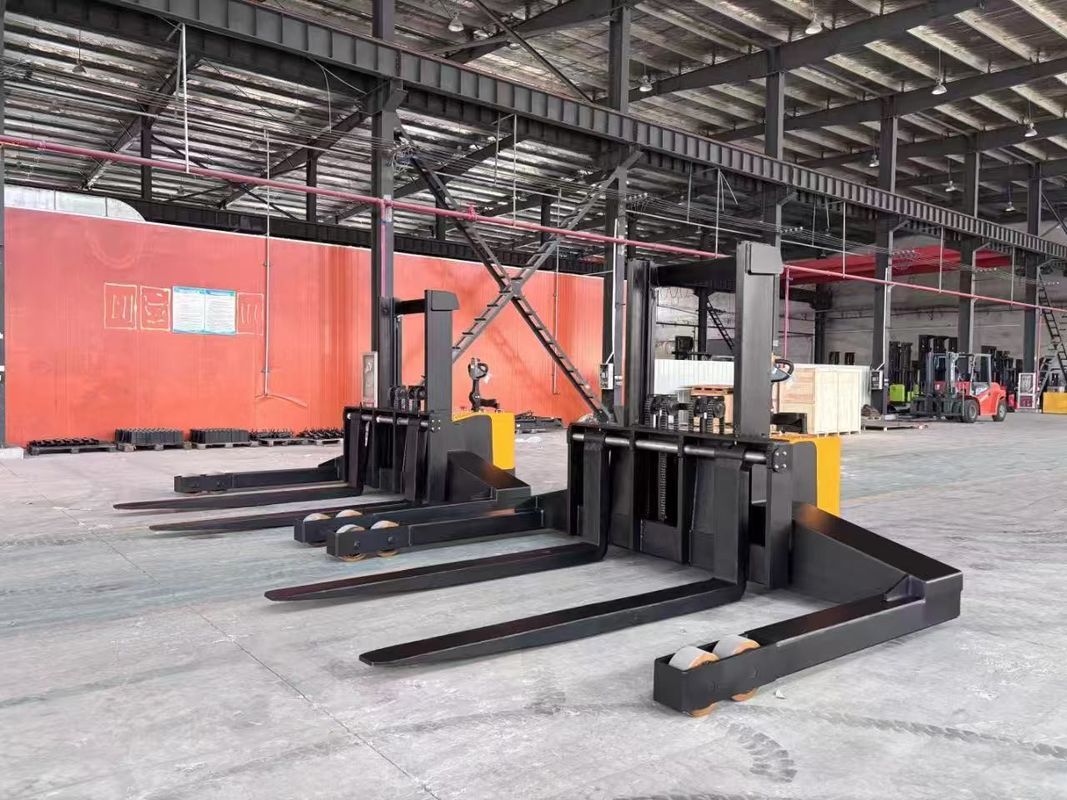

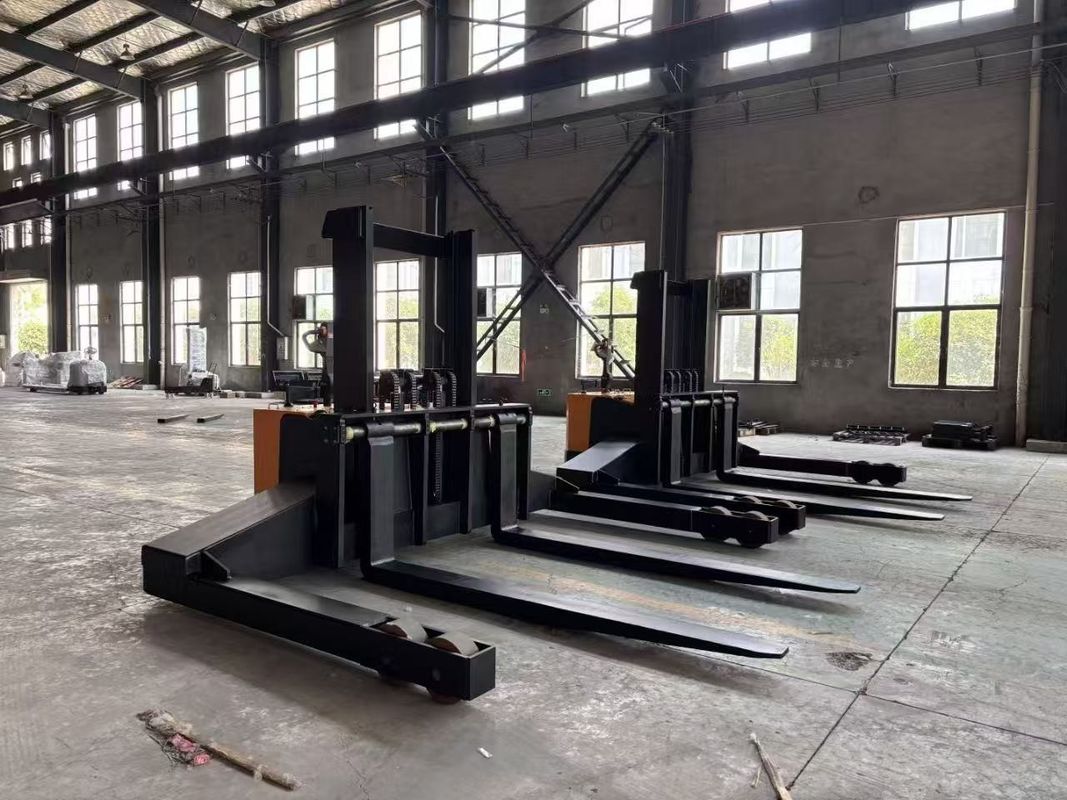

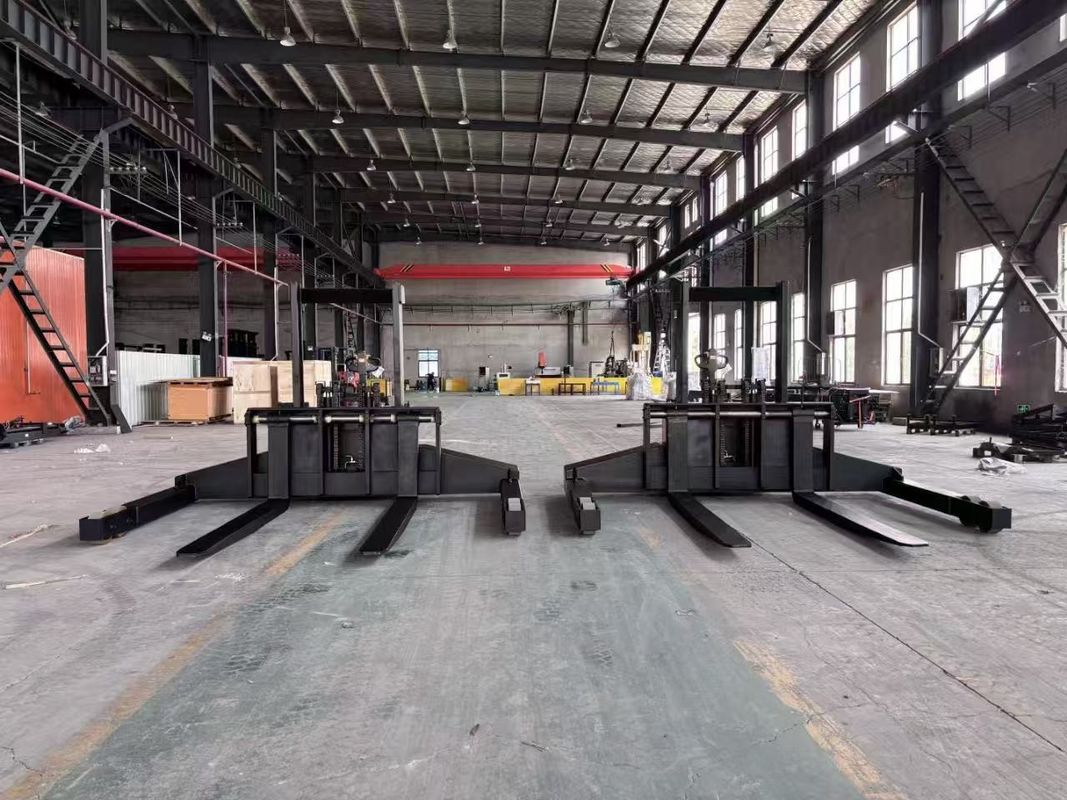

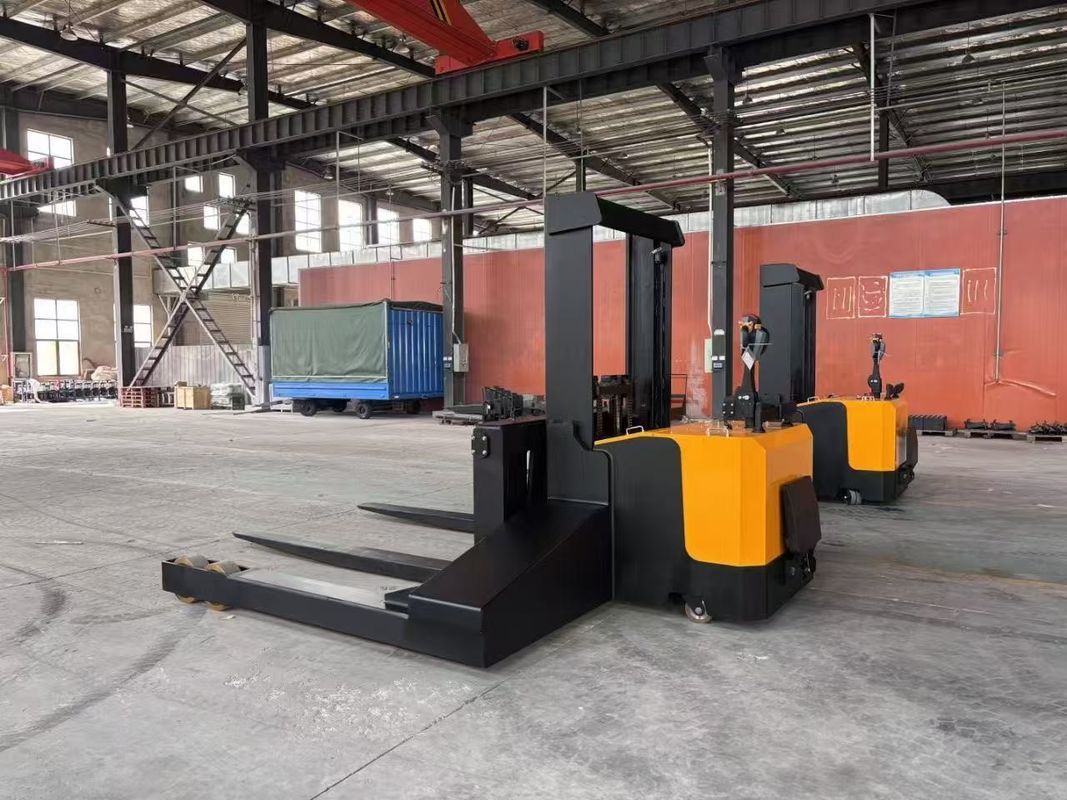

Non standard large tonnage stacker truck
Rated load capacity: 6000kg
Height increase: 1400mm
Fork leg width: 3200mm
Fork length: 2500mm
Battery capacity: 48V300AH
CURTIS Control System in the United States
Electronic steering pedal protection arm
Walking alarm light, reversing buzzer
Activity chain forging fork
Advantage
Safety / 安全
Product parameter
| Model | CDD30D-17 | |
| Type of power | Lead-acid battery | |
| Driving type | Walkie type | |
| Rated load | Q(kg) | 6000 |
| Lifting height | h3(mm) | 1400 |
| Overall length | L1(mm) | 2067 |
| Overall width | b1/b2 | 850/1360 |
| Fork dimensions | s/e/l(mm) | 65/190/1150 |
| Outside width of forks | b5(mm) | 680 |
| Mast closed height | h1(mm) | 2090 |
| Maximum height of mast during lifting (including load backrest) | h4(mm) | 5100 |
| Width of load backrest | b3(mm) | 800 |
| Height of fork off the ground (minimum) | h6(mm) | 86-88 |
| Height of vehicle off the ground (minimum) | m(mm) | 30 |
| Height of the operating handle | h5(mm) | 1270 |
| Battery,voltage/capacity | V/Ah | 24/210 |
| Weight of battery | kg | 90 |
| Vehicle weight (including battery) | kg | 1370 |
| Driving motor Power (S2-60min) | kw | 1.5(AC) |
| Lifting motor power | kw | 2.2 |
| Tire | Polyurethane | |
| Tire dimensions,drive wheel | mm | φ250x80 |
| Tire dimensions,bear wheel | mm | φ85x70 |
| Dimensions of balance wheel | mm | φ130x55 |
| Number of wheels,front/rear (x=drive wheel) | 4/1X-3 | |
| Wheel track,drive side | mm | 545 |
| Wheel track,bear side | mm | 490 |
| wheelbase | y(mm) | 1421 |
| Load center | C(mm) | 600 |
| Front overhang | x(mm) | 695 |
| Turningradius | Wa(mm) | 1637 |
| Stacking channel width (pallet 1000x1200)1200 across forks | Ast(mm) | 2511 |
| Stacking channel width (pallet 800x1200)1200 along the forks | Ast(mm) | 2482 |
| Full-loadaxle load,drive side/bear side | kg | 1016/2354 |
| No-load axle load,drive side/bear side | kg | 900/470 |
| Driving speed,full load/no load | km/h | 3.5/4.0 |
| Lifting speed,full load/no load | mm/s | 80/125 |
| Descent speed,full load/no load | mm/s | 160/105 |
| Maximum climbing,full load/no load (S2-5min) | % | 6/10 |
| Braking type | Electromagnetic brake | |
| Steering type | Mechanica steering | |
| Battery replacement method | Lifting type | |
| Note: 1 The above is the load curve of CDD20D fork with outer distance of 680mm 2, When the outerditance of the forks is560mm,CDD20D wil not lose load when theliting heightHis 1600~2500mm; .When thelifting height His2500~5000mm,theloadii s reduced by 150kg accordingly based on the standard load curve. |
||
