Advantages of Three-Way Electric Forklifts
Space-saving
Environmentally Friendly and Energy-efficient
Indoor Operations
Ideal for short-distance transportation and precise stacking in factory warehouses or near production lines.
Narrow Aisle Operations
In aisles between 1.5 and 2 meters wide, three-way forklifts can complete tasks efficiently.

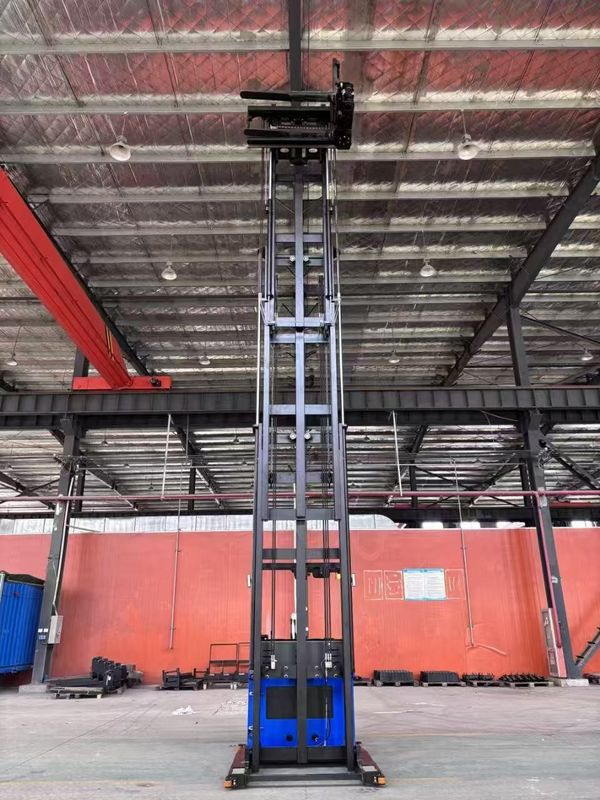

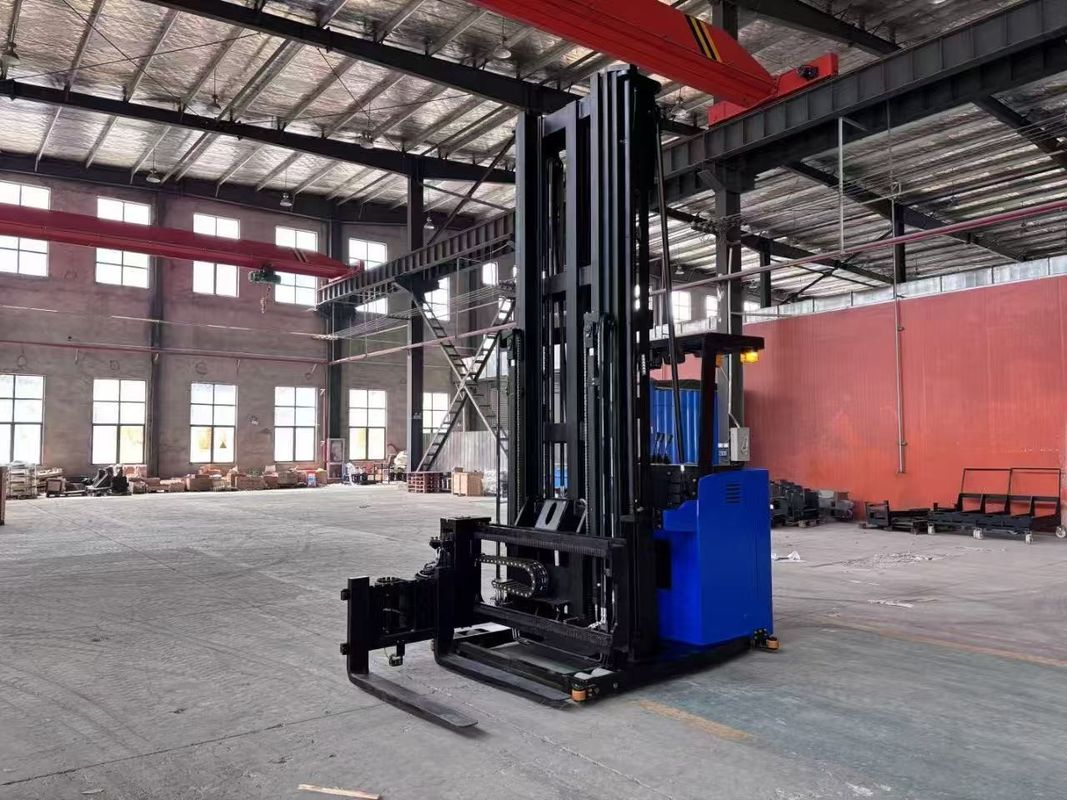

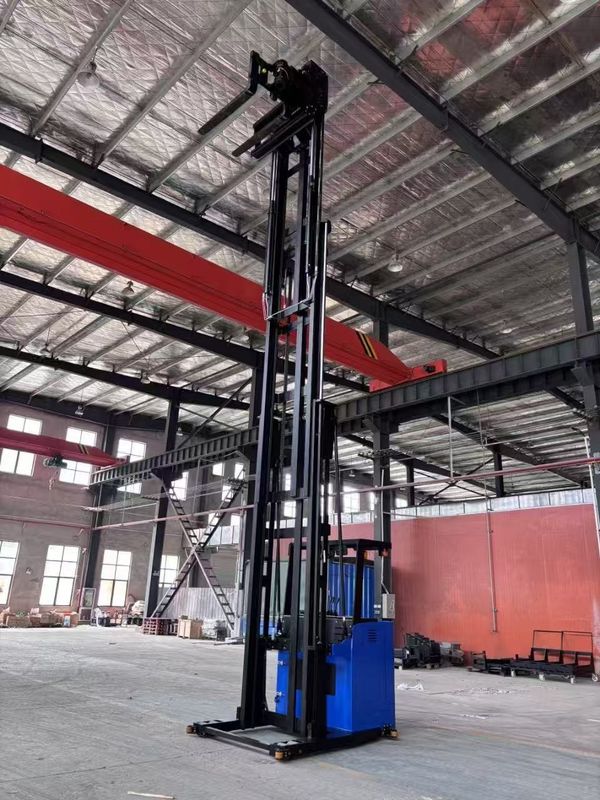

Three way forklift
Rated load: 1500kg
Height increase: 8000mm
Fork length: 1220mm
Battery capacity: 48V480AH
Three section fully free portal frame
CURTISk Control System
Wireless camera monitor
Pedestrian downward side standing type
Multi functional instrument
Walking alarm light, reversing buzzer
Electronic steering drive wheel display
Product parameters:
| Name | 3-Way Pallet Stacker | ||||
| Model | CSD10 | CSD10SQ | CSD16 | CSD16SQ | |
| Power type | Storage battery | ||||
| Driving mode | Side stand-on type | ||||
| Rated load | kg | 1000 | 1000 | 1600 | 1600 |
| Load center distance | mm | 500 | |||
| Front overhang distance | mm | 655 | 655 | 665 | 665 |
| wheelbase | mm | 1605 | 1605 | 1700 | 1700 |
| Vehicle weight (including battery) | kg | 4760 | 5270 | 4650 | 5640 |
| Tire type (drive side/ load side) | Polyurethane PU | ||||
| Tire size (load-bearing side) | mm | Φ140×100 | Φ140×100 | Φ140×127 | Φ140×127 |
| Tire size (drive side) | mm | Φ343×135 | Φ343×135 | Φ400×165 | Φ400×165 |
| Number of wheels (front/ rear) (X= drive wheel) | 4/1X | ||||
| Track width (bearing side) | mm | 1210 | 1210 | 1280 | 1280 |
| Closing height of gantry | mm | 2570 | 2750 | 2565 | 2823 |
| Free lifting height | mm | 0 | 1780 | 0 | 1745 |
| Lifting height | mm | 3000 | 4500 | 3000 | 4500 |
| Maximum height of gantry during lifting (including blocking rack) | mm | 4060 | 5450 | 4040 | 5555 |
| Height of roof protection frame | mm | 2240 | 2240 | 2260 | 2260 |
| Seat height | mm | 1070 | |||
| Overall length | mm | 2892 | 2890 | 3000 | 3000 |
| Overall width | mm | 1450 | 1450 | 1550 | 1550 |
| Fork size | mm | 1070*100*35 | 1070*100*35 | 1070*125*50 | 1070*125*50 |
| Installation level | Class II type B | ||||
| Outside distance of fork | mm | 230~760 | 230~760 | 400~780 | 400~780 |
| Ground clearance of gantry | mm | 40 | |||
| Stacking channel width (pallet 1000x1200) | mm | 1480 | 1480 | 1600 | 1600 |
| Turning radius | mm | 1750 | 1750 | 1850 | 1850 |
| Driving speed (full load/ no load) | km/h | 8/9 | 8/9 | 7.5/8 | 7.5/8 |
| Lifting speed (full load/ no load) | mm/s | 180/315 | |||
| Braking mode | Electromagnetic type | ||||
| Drive motor power (S2-60min) | kw | 4.5 AC | 4.5 AC | 5.5 AC | 5.5 AC |
| Lifting motor power (S3-15%) | kw | 6.3 DC | 6.3 DC | 8.6 AC | 8.6 AC |
| Battery, voltage/ rated capacity | v/ah | 48/400 | 48/400 | 48/420 | 48/420 |
| Battery weight | kg | 675 | 675 | 740 | 740 |
| Steering system | Electronic steering | ||||
| Battery replacement method | Side pull type | ||||
